Over the Board Mount

Stock No. DMS 1004 OBM-100-UV

This over the board mount can be used to secure interactive whiteboards from multiple manufacturers over an existing chalkboard or whiteboard.

Able to accommodate 1-3/4” to 4” deep chalk tray or board surround
Able to span chalkboards with heights between 45” to 67-1/2”
400 pound carry capacity with proper hardware and anchoring
VESA compatible
Designed to mount under the chalk tray and above the board, mounting directly to wall surface
Can be mounted to block, wood, drywall, and other wall surfaces using appropriate hardware for applications (not included)
End brackets can be mounted inward or outward for maximum flexibility and aesthetics
Rigid 6061 grade tempered aluminum construction
All assembly hardware included
Mount has rounded corners for additional safety
Side bolting assembly leaves flat mounting face
Durable white powder coating

0 Comments

Inline Feedbacks

View all comments

Over the Board Mount Accessories

Stock No. DMS101000

Extension plates allow for mounting over chalkboards with trays larger than 4” up to 7”

DMS101500

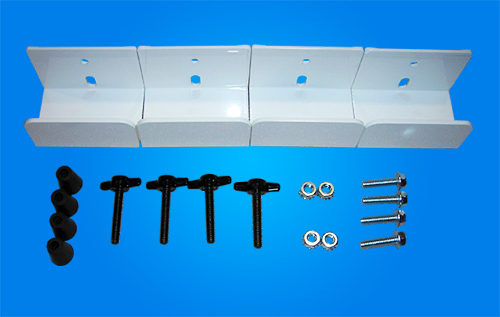

W-Clips attach directly to the Over the Board Mount to allow for mounting of standard whiteboards

DMS101600

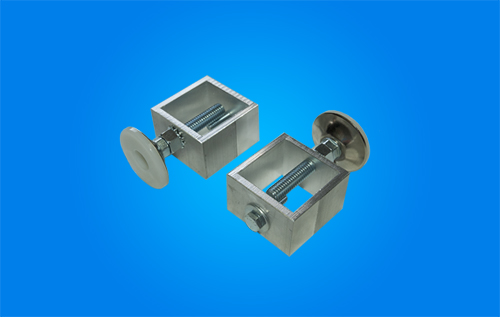

Our vibration dampeners are installed between the rails and the wall, minimizing vibration and “bounce” of the board while in use

	Over the Board Mount DMS 1004 OBM-100-UV	Stand Off Rails DMS 1005 SOR/S
Color
Color	Powder-Coated White	Powder-Coated Gray
Height Adjustment Screws
Height Adjustment Screws	Parallel to Board	Perpendicular to Board
Vibration Dampeners
Vibration Dampeners	Not Included	Included
Board Mounting Slot Width
Board Mounting Slot Width	0.28" (up to 6mm or 1/4")	0.39" (up to 8mm or 5/16")
VESA Compliant
VESA Compliant	Yes	Yes
Weight Capacity
Weight Capacity	400 lbs.	400 lbs.
Height Span
Height Span	up to 67 1/2"	up to 67 1/2"
		View Product
